Holographic Invisible Screen

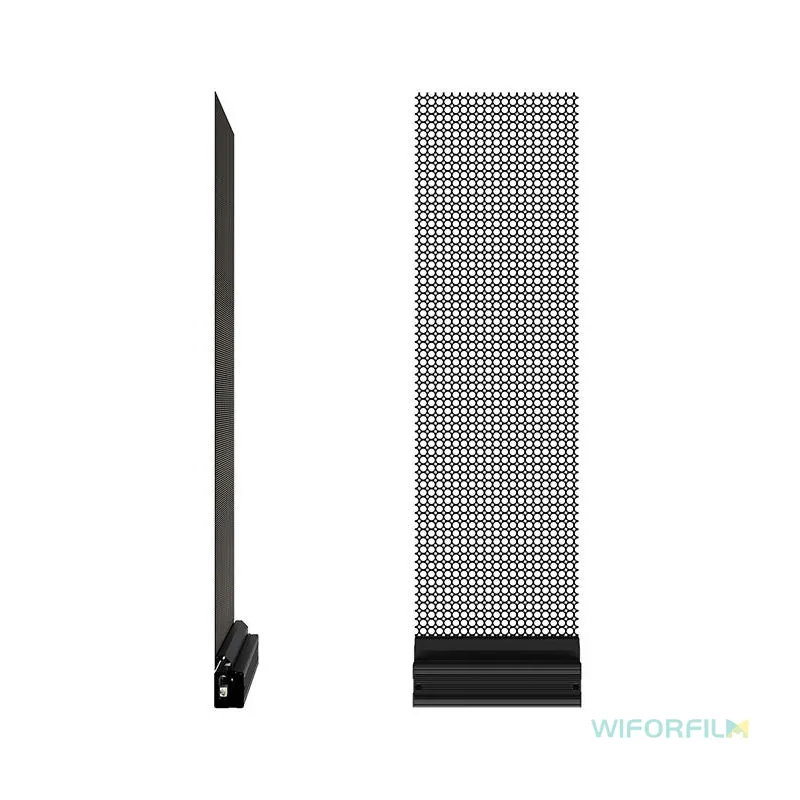

Holographic Transparent LED Screen

WF-3D - Holographic Transparent LED Screen Series

The holographic transparent LED screen Series is an innovative transparent display,utilizing high-end grid-shaped black materials with high-temperature, high transparency, high brightness, high definition and high flexibility.Boasting no structural frame design and unique transparent LED display elements.The holographic LED screen supports bending, cutting and splicing tointegrate into various spaces, such as buildings and commercial areas, providing stunning 3D images that seem to magically pop up in the air.

  • Ultra Thin,Ultra Light,Easiest Installation
  • Bendable And Cuttable
  • Integrated Lamp Driver With Static Scan
  • High Brightness (5,000 - 6,000 Nits)
  • High Transparency (>90%)
  • High Refresh Rate (7680 Hz)
  • Great Heat Dissipation Performance

Product Paramenters


Model No. WF-P3.91-1025 / WF-P3.91-1200 / WF-P3.91-1500
WF-P6.25-1025 / WF-P6.25-1200 / WF-P6.25-1500
LED Type SMD 2121 (Integrated lamp driving) 3 in 1
Pixel Pitch P3.9 / P6.25
Module Size 250x1025mm / 250x1200mm / 250x1500mm
Density/㎡ 65536 dots/㎡ ; 25600 dots/㎡
Brightness ≥3500 nits, Automatic and manual adjustment based on ambient brightness
Transparency >90%
Refresh Rate 7680HZ
Driving Method Static Scan
Gray Scale ≥16(bit)
IP Level IP20
View Angle Horizontal: 160° ; Vertical: 140°
Power Consumption (Max/Average) 1200W / 450W/m²
Operating Environment Temperature: -20°C ~ 50°C ; Humidity: 10% ~ 85%
Control System Novastar / Colorlight
Average lifespan ≥100,000 Hours
Installation Method Hanging / Standing / Glass Adhesive
Package Method Plywood Case / Flight case

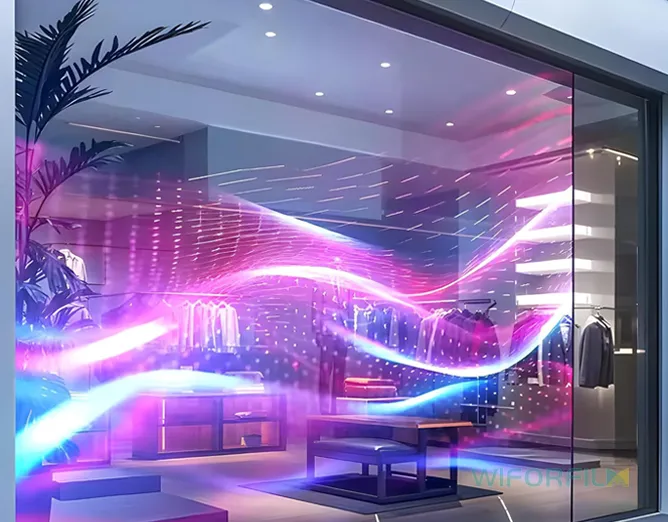

Transparent & Invisible

Full-screen transparent invisible,front and back viewing transparency can reach more than 90%. no obstruction to light and sightline.

Transparent & Invisible

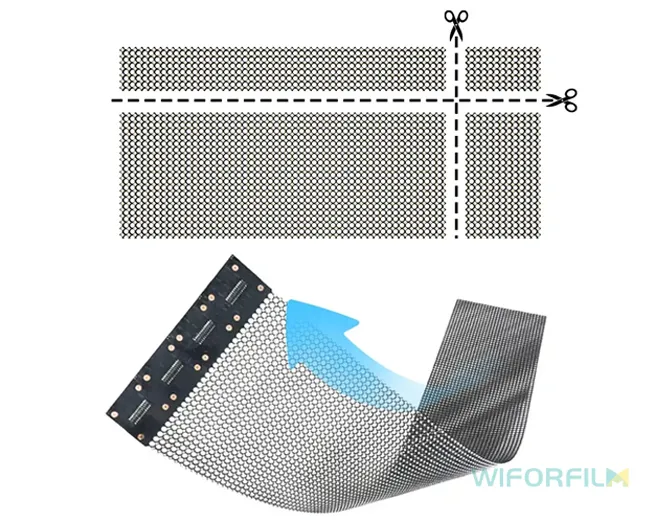

bent, cut, and used flexibly

Flexible

Standard holographic invisible screen modules can be bent, cut, and used flexibly. It is very suitable for curved glass and special-shaped screens.

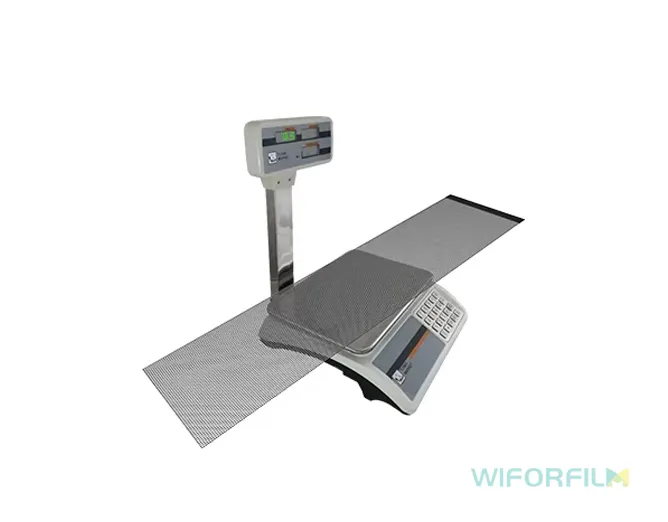

Ultra Light

Professional aesthetic design, thin and beautiful. The weight is only 1.5KG/square meter.

Ultra Light

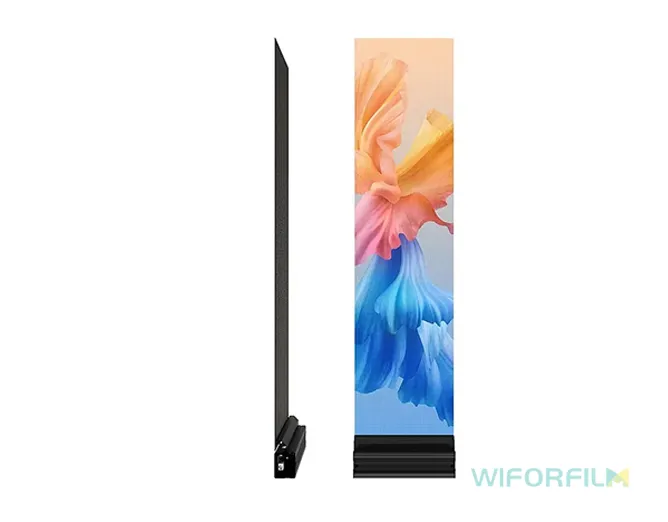

Ultra Thin

Ultra Thin

The holographic invisible screen thickness is less than 2MM, which can be seamless surface mount. Mounted on transparent glass.

High-Definition Display Quality

Horizontal and vertical pixels are equally spaced,static scanning with lamp-driver synchronization for a more stable image!Up to 16 Contrast Gray Scale, rich and detailed colors.

High-Definition Display Quality
Holographic 3D Suspension Images

Holographic 3D Suspension Images

With high-performance IC and transparent structural design, coupled 3D video contents, Our holographic LED screen Series allows the virtual images to integrate with the actual background, creating an impressive floating 3D effect and providing a captivating visual experience.

High Brightness and High Contrast

9,000:1 (high contrast), 5,000cd/m ² (high brightness), dazzling and eye-catching.

High Brightness and High Contrast

Extremely Simple Installation

The Holographic LED screen use no frame structure, can be front and back mounted.Various installation options such as surface mounting, hanging and floor standing are available to suit your installation needs.(Please refer to the installation video below for detailed instructions.)

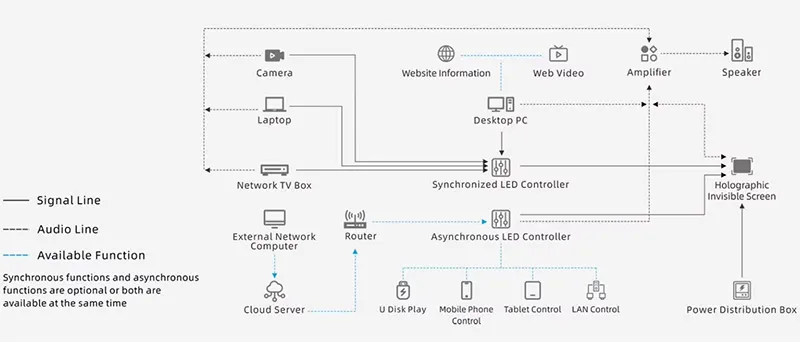

Topology Diagram

WIFORFILM's Holographic Invisible Screen offer advanced system topology, providing you with the flexibility to choose between synchronous and asynchronous functions, or even utilize both simultaneously.

Topology Diagram

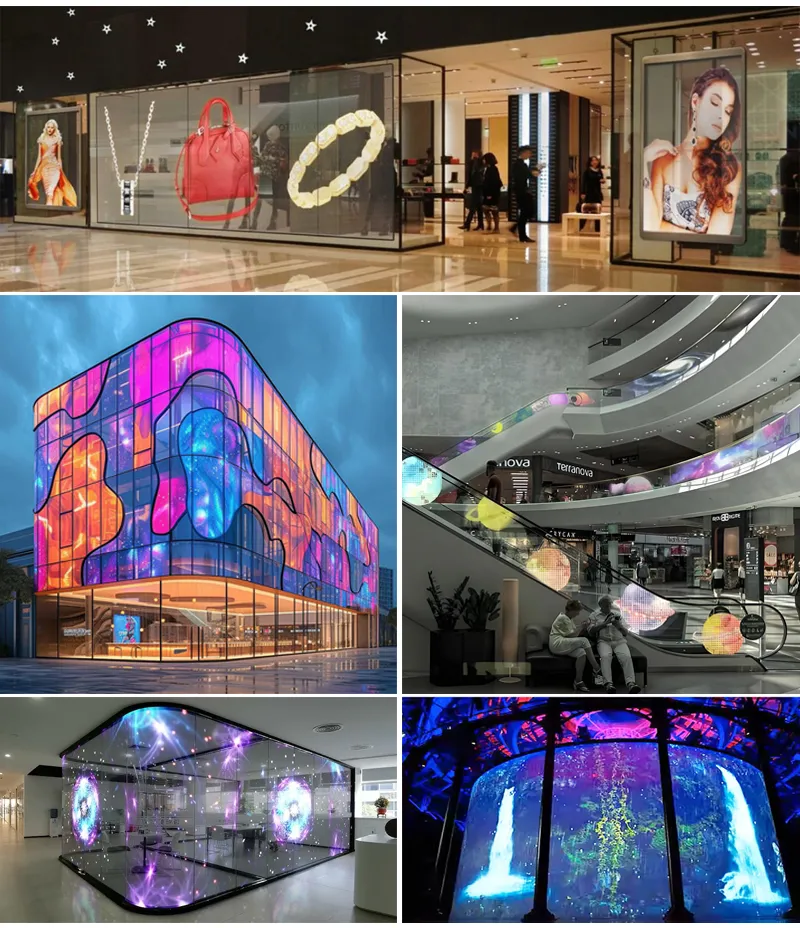

Applications

The Holographic Transparent LED Screen widely used in creative display, comprehensive shopping malls, retail window, exhibition display and other scenes.

Applications of Holographic Transparent LED Screen

FAQs

  • How about the MOQ?

    Sample module is accepted as MOQ.

  • What does "6.25mm or 3.91mm LED" mean?

    The smaller number means higher definition. P3.91 is clearer than P6.25.

  • Can I customize it?

    Of course. We supply OEM service and all products can be customized. We have a professional product development team, welcome to customize.

  • Do you provide any free spare parts in each order?

    Yes, a certain amount of spare parts will be provided for free, including modules, power cables, signal cables, ICs, receiving cards, etc.

  • Do you offer guarantee for the products?

    Yes, we offer 1 year warranty for our products.
